Mezzanine Handrail - Make your own - Galvanised

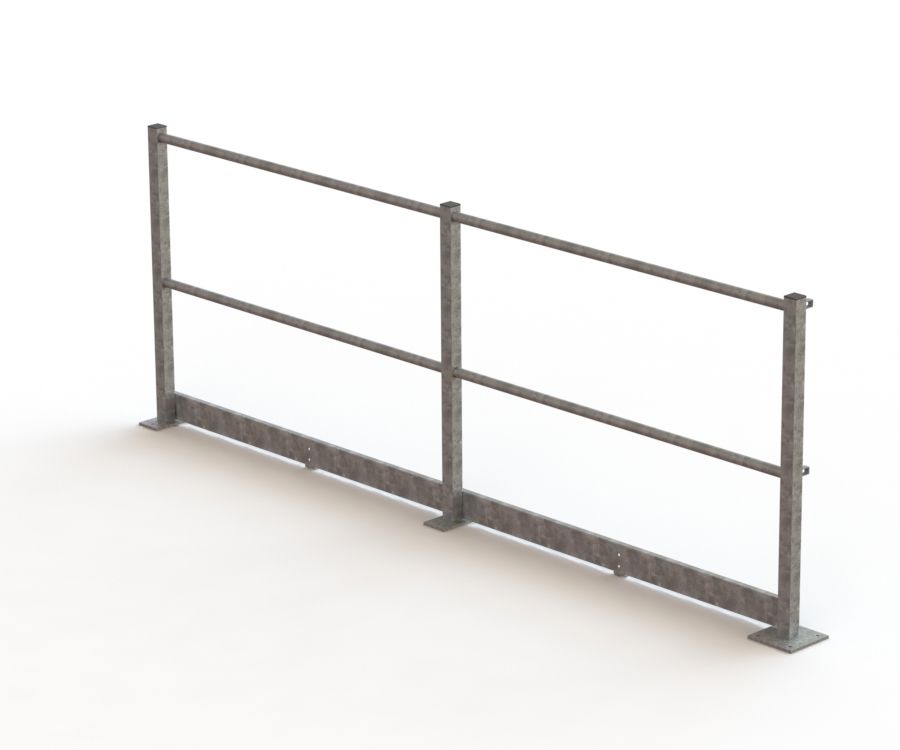

Mezzanine Handrail Components - Galvanised
Custom made to order
Lead Time: 7-14 working days Galvanised
Product Code
Mezzanine-Handrail-myo-galv
Component Details
| Item |
Dimensions |
Notes |
| End Posts | 50 x 50mm box section. 1100mm high | required at the end of a run of handrail |
| Mid Posts | 50 x 50mm box section. 1100mm high | required at midpoints, on 1500mm centres to give strength to the handrail run. |
| Corner Posts | 50 x 50mm box section. 1100mm high | required when your handrail turns at 90 degrees. |
| CHS Handrails | 33mm circular tube | sold in pairs and supplied in 2990 (suitable for 3000mm post centres) or 1490mm lengths (suitable for 1500mm post centres). |
| Kickboards | 100mm high | sized to fit at 1500mm centres but can be cut down on-site to accommodate a shorter end run. |
Handrail posts should be positioned every 1.5 meters. At the end of the handrail run, the CHS handrails and kickboards should be cut down on-site to accommodate a shorter end bay.
CHS rails are sold in pairs and you will need one pair every 1.5m/3m depending on length purchased, and one kickboard per 1.5m length.
Kickboards are designed to be installed behind your posts (closest to the floor edge).
CHS rails are sold in pairs and you will need one pair every 1.5m/3m depending on length purchased, and one kickboard per 1.5m length.
Kickboards are designed to be installed behind your posts (closest to the floor edge).
If you're not quite sure what you need, contact us with a simple drawing of your requirements and we will be happy to work it out for you.
| Item | Handrail's |
|---|---|
| Lead Time | 7-14 working days (Galvanised) |
| Made To Order | Yes |
