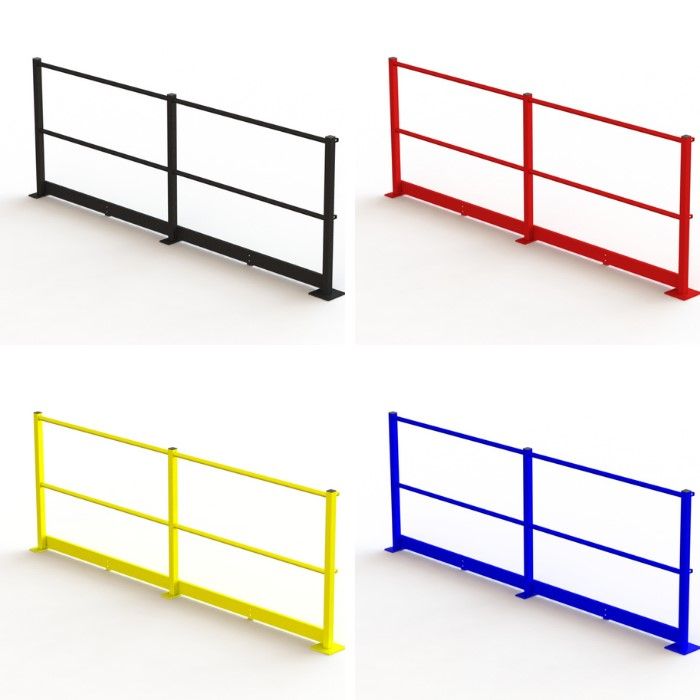

Mezzanine Handrail - Make your own - Powdercoated

Be the first to review this product

Mezzanine Handrail Components - Powdercoated

Standard Choice of 4 colours

Custom made to order

Lead Time: 10-16 working days Powdercoated (if you are having multiple colours this may be extended).

Product Code

Mezzanine-Handrail-myo-PC-G

Grouped product items
Product Name	Attributes	Qty
End Post-Blue SKU: End Post-Blue Short Description: 50x50mm Box section end post £27.82 £23.18
End Post-Red SKU: End Post-Red Short Description: 50x50mm Box section end post £27.82 £23.18
End Post-Black SKU: End Post-Black Short Description: 50x50mm Box section end post £27.82 £23.18
End Post-Yellow SKU: End Post-Yellow Short Description: 50x50mm Box section end post £27.82 £23.18
Mid Post-Black SKU: Mid-Post-Black Short Description: 50x50mm Box section end post £27.82 £23.18
Mid Post-Red SKU: Mid-Post-Red Short Description: 50x50mm Box section end post £27.82 £23.18
Mid Post-Blue SKU: Mid-Post-Blue Short Description: 50x50mm Box section end post £27.82 £23.18
Mid Post-Yellow SKU: Mid-Post-Yellow Short Description: 50x50mm Box section end post £27.82 £23.18
Corner Post-Yellow SKU: Corner-Post-Yellow Short Description: 50x50mm Box section end post £31.20 £26.00
Corner Post-Blue SKU: Corner-Post-Blue Short Description: 50x50mm Box section end post £31.20 £26.00
Corner Post-Red SKU: Corner-Post-Red Short Description: 50x50mm Box section end post £31.20 £26.00
Corner Post-Black SKU: Corner-Post-Black Short Description: 50x50mm Box section end post £31.20 £26.00

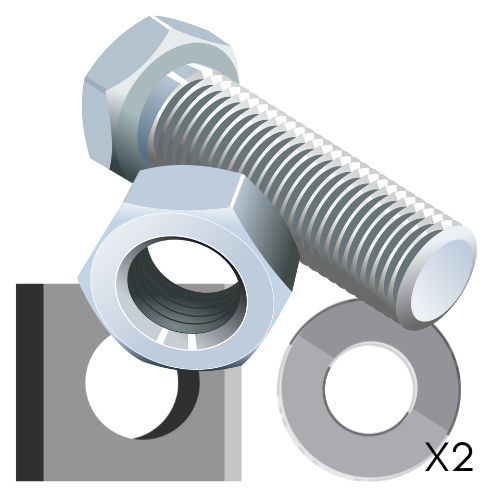

Post Fixing Set (for 38mm board) Per Post SKU: post_fixing_sets Short Description: ... £2.04 £1.70
CHS 33.7mm Handrail (Pair) 1490mm-Black SKU: CHS 33.7mm Handrail (Pair) 1490mm-Black Short Description: ... £23.52 £19.60
CHS 33.7mm Handrail (Pair) 1490mm-Red SKU: CHS 33.7mm Handrail (Pair) 1490mm-Red Short Description: ... £23.52 £19.60
CHS 33.7mm Handrail (Pair) 1490mm-Blue SKU: CHS 33.7mm Handrail (Pair) 1490mm-Blue Short Description: ... £23.52 £19.60
CHS 33.7mm Handrail (Pair) 1490mm-Yellow SKU: CHS 33.7mm Handrail (Pair) 1490mm-Yellow Short Description: ... £23.52 £19.60
CHS 33.7mm Handrail (Pair) 2990mm-Yellow SKU: CHS Handrail (Pair) 33.7mm-Yellow2990mm Short Description: ... £43.62 £36.35
CHS 33.7mm Handrail (Pair) 2990mm-Red SKU: CHS Handrail (Pair) 33.7mm-Red 2990mm Short Description: ... £43.62 £36.35
CHS 33.7mm Handrail (Pair) 2290mm-Black SKU: CHS Handrail (Pair) 33.7mm-Black Short Description: ... £43.62 £36.35

Details

Component Details

Item	Dimensions	Notes
End Posts	50 x 50mm box section. 1100mm high	required at the end of a run of handrail
Mid Posts	50 x 50mm box section. 1100mm high	required at midpoints, on 1500mm centres to give strength to the handrail run.
Corner Posts	50 x 50mm box section. 1100mm high	required when your handrail turns at 90 degrees.
CHS Handrails	33mm circular tube	sold in pairs and supplied in 2990 (suitable for 3000mm post centres) or 1490mm lengths (suitable for 1500mm post centres).
Kickboards	100mm high	sized to fit at 1500mm centres but can be cut down on-site to accommodate a shorter end run.

Handrail posts should be positioned every 1.5 meters. At the end of the handrail run, the CHS handrails and kickboards should be cut down on-site to accommodate a shorter end bay.

CHS rails are sold in pairs and you will need one pair every 1.5m/3m depending on length purchased, and one kickboard per 1.5m length.

Kickboards are designed to be installed behind your posts (closest to the floor edge).

If you're not quite sure what you need, contact us with a simple drawing of your requirements and we will be happy to work it out for you.

More Information

More Information
Item	Handrail's
Lead Time	15-20 working days
Made To Order	Yes
