Quick order mezzanine handrail.
Custom made to order
Lead Time: 7-16 working days depending on finish.

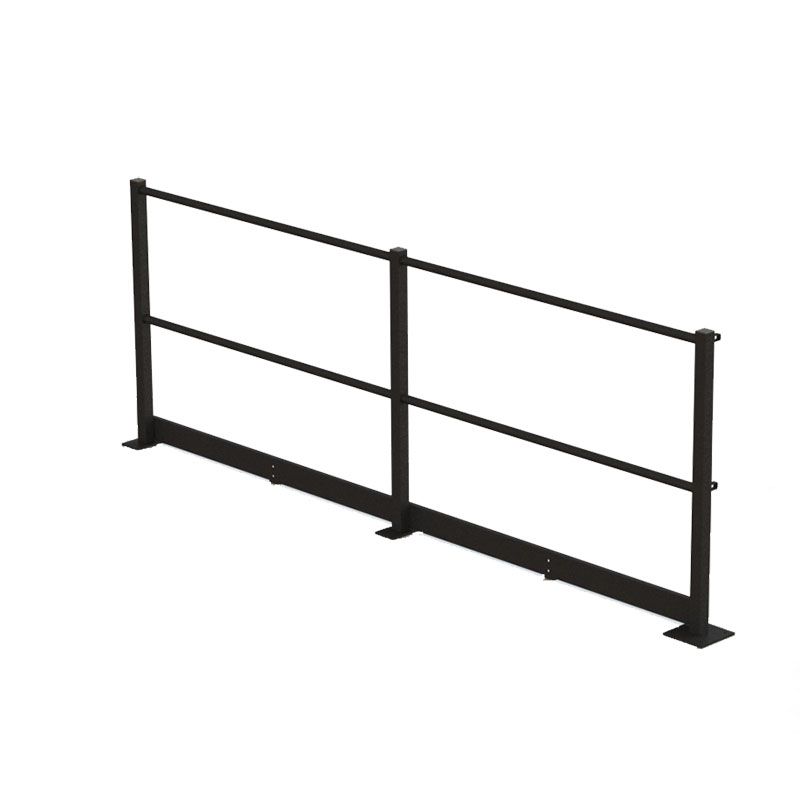

The Mezzanine Floor Handrail comes in a 3-meter length; however, it can be made to order. Feel free to contact us with your made-to-order specifications or queries.
The Mezzanine Floor Handrail is a must-have safety feature. It is suitable for use on walkways, staircases, and ramps.
With a length of 3 meters and multiple colour options, it's the perfect way to make an area safe, due to its robust craftsmanship and choice of high visibility colours.
Component details
| Item |
Dimensions |
Notes |
| End Posts | 50 x 50mm box section. 1100mm high | Required at the end of a run of handrail |
| Mid Posts | 50 x 50mm box section. 1100mm high | Required at midpoints, on 1500mm centres to give strength to the handrail run. |
| Corner Posts | 50 x 50mm box section. 1100mm high | Required when your handrail turns at 90 degrees. |
| CHS Handrails | 33mm circular tube | Sold in pairs and supplied in 2990 (suitable for 3000mm post centres) or 1490mm lengths (suitable for 1500mm post centres). |
| Kickboards | 100mm high | Sized to fit at 1500mm centres but can be cut down on-site to accommodate a shorter end run. Available in 1490mm and 2990mm |
Other important information
Handrail posts should be positioned every 1.5 meters. At the end of the handrail run, the CHS handrails and kickboards should be cut down on-site to accommodate a shorter end bay.
CHS rails are supplied as pairs. Depending on the length purchased, you will need one pair every 1.5m/3m and one kickboard per 1.5m length.
Kickboards are designed to be installed behind your posts (closest to the floor edge). If you have any inverted corners to your floor (for example, where a staircase comes up through your floor).
If you're not quite sure what you need, contact us with a simple drawing of your requirements, and we will be happy to work it out for you.
| Item | Handrail's |
|---|---|
| Country of Manufacture | United Kingdom |
| Manufacturer | Gabitie Fabrication |
| Lead Time | 7-16 Working Days (finish Dependant) |
| Made To Order | Yes |
